650V Integrated Circuit Chip ICE3BR0665JZ 65kHz AC DC Converters 8DIP 7Leads
Product Description Of ICE3BR0665JZ
ICE3BR0665JZ DIP-7 package. The CoolSET® -F3R jitter series (ICE3BRxx65J) is the latest version of CoolSET® -F3. It targets for the OffLine battery adapters and low cost SMPS for lower power range such as application for DVD R/W, DVD Combi, Blue ray DVD player, set top box, etc.
Specification Of ICE3BR0665JZ
| Part Number | ICE3BR0665JZ |
| Voltage - Breakdown | |
| Topology | |
| Voltage - Start Up | |
| Voltage - Supply (Vcc/Vdd) | |
| Duty Cycle | |
| Frequency - Switching | |
| Power (Watts) | |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Operating Temperature | |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | |
| Mounting Type | |
Feature Of ICE3BR0665JZ
- Active Burst Mode to reach the lowest Standby Power Requirements < 50mW
- Auto Restart protection for overload, overtemperature, overvoltage
- External auto-restart enable function
- Built-in soft start and blanking window
- Extendable blanking Window for high load jumps
- Built-in frequency jitter and soft driving for low EMI
- 650V avalanche rugged CoolMOS® with built-in Startup Cell
- 65kHz internally fixed switching frequency
Typical Application Of ICE3BR0665JZ
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
|
|

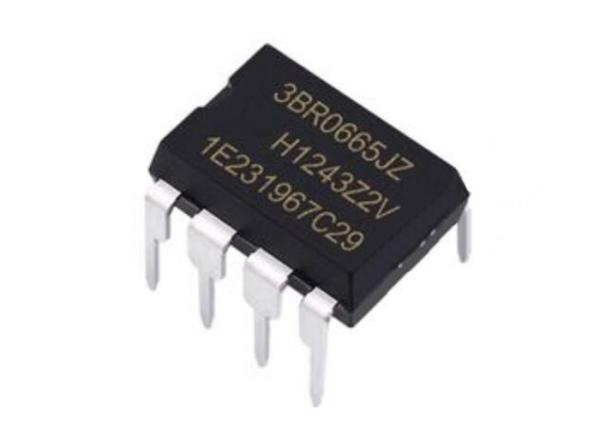

650V Integrated Circuit Chip ICE3BR0665JZ 65kHz AC DC Converters 8DIP 7Leads Images
|
